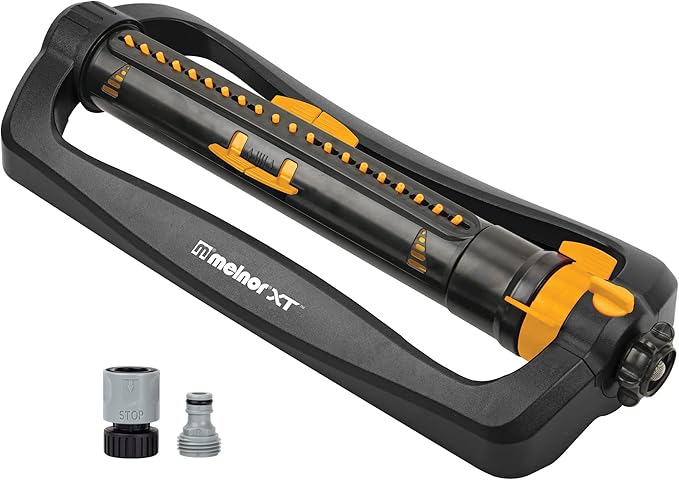

Melnor 65167AMZ XT Turbo Oscillating Sprinkler

The current linked product is Melnor 65167AMZ, an XT oscillating sprinkler with twenty nozzles, TwinTouch width and range adjustments, watering-width indicators and Zoom Control for overall area. The reviewed photograph shows the black sled base and quick-connect pieces. Do not confuse this listing with a similarly named metal-base model or one with an integrated timer.

Melnor's current XT45200 family page describes the same control functions, but carries a different model identifier. It is useful corroboration of how this control family works, not proof that every included accessory or replacement part is interchangeable. Confirm the model and package contents when buying. We have not measured distribution, durability or connection leakage in a comparative test.^[1][6]

The listing advertises coverage up to 4,500 square feet. That is a maximum coverage claim, not a promise that every part of a lawn receives the same depth of water. The University of Minnesota recommends checking for low pressure, leaks and water landing outside the intended area before measuring irrigation performance.

Its catch-can method measures water collected at several positions across an irrigation zone. The point is to identify dry and wet areas as well as an average application rate. Apply that principle to the area served by this portable sprinkler: inspect the edges and middle, adjust the setup and repeat the check if coverage is uneven. Increasing runtime alone also adds more water to places already receiving plenty.^[1][4]

Melnor's XT45200 instruction page links a universal oscillator cleaning sheet. It describes flushing debris after removing the end cleaning tool, gently moving the tube while water runs, then replacing the tool securely. The drawings also show the inlet screen and the nozzle-cleaning tool. The sheet is useful maintenance context, but confirm the matching parts and supplied instructions for your 65167AMZ before disassembly.

The family page advertises a dirt-resistant drive for well-water use. That is not a maintenance-free promise or evidence that the sprinkler can never clog or stop moving. If operation changes, inspect the water supply and follow the applicable cleaning instructions. We have no measured service-life result or verified complete winter-storage procedure for this exact package.^[7][6][1]

An oscillating fan is a useful option for a rectangular lawn section. The Orbit tripod offers a different, rotating full- or partial-circle pattern and an elevated head. Neither shape is automatically more water-efficient; useful coverage depends on how the pattern matches the lawn and on the distribution you observe.

A separate hose timer can switch water on and off, but it does not correct poor sprinkler placement. The catalog's Orbit 62061 also has specific interval choices rather than unlimited scheduling: six hours, twelve hours or one to seven days. Check whether those choices fit the establishment routine you actually need before combining the two products. A timer is a companion for control, not a substitute for checking the seedbed.^{[1][8][5][4][3]}
